The wet pan mill is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore.
As their small investment, high yield, the production cost is low, good benefits, praised by users, domestic alternative to the ball mill equipment. Grind gold machine easy installation and maintenance, small investment, high yield, quick, low-cost production, is the ideal equipment for mine SMEs beneficiation.
Use and Maintenance of wet pan mill/gold grinding machine:
1.The normal operation of the mill, before they start feeding.
2. This machine prohibit strip start, the outage at boot time, you must first clean up the residual ore in the middle of the milled slot and then start.
3. Should be uniform feeding not erratic, it is best to use the feeder.
4. Bearing frequent butter, gear box or car rear axle with frequent checks whether the loss of gear oil.
5. Regular checks of the various parts of the screw is loose.
6. Found bearing damage must be promptly replaced, shaft eccentric avoid damage to other parts.
7. Mill runtime to pay attention to that the reducer or bearing part of the presence or absence of abnormal sound, whether the temperature is too high, the motor current is too large irregularities; should be shut down immediately if the above phenomenon, exclude.
8. Machine maintenance, to ensure safety, you must remove the motor belt.
Technical Parameter of wet pan mill/gold grinding machine:
Specification
input size(cm)
Rotation speed(r/min)
Power(kw)
Weight(t)
Capacity(t/h)
1600*400*200*500±20
30
20-22
30
14.5
6-10
1500*350*200*460±20
30
20-22
22
13.5
5-8
1400*250*150*350±20
30
16-18
18.5
8.5
3-5
1300*250*150*350±20
30
16-18
15
7.5
2-4
1200*200*80*250±20
30
17-19
11
5.5
1.5-2
1100*200*80*250±20
30
17-19
7.5
5.0
1-1.5
1000*200*80*250±20
30
13-15
5.5
4.5
1
900*200*80
30
10-15
5.5
3.0
0.5

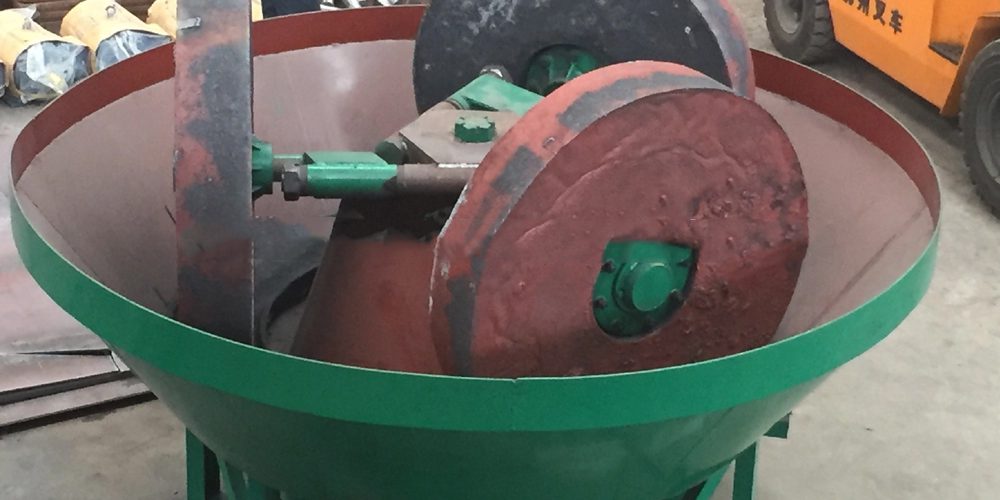

Our wet pan mills’ advantages:
1: The edge of the water pan is specially processed with the edge protecting. our water pan thickness is 6mm. other factories nomal thickness is 3mm.
2: Stand support is the frame of the machine. It will support the basin and roller working on it. on the bottom, the speed reducer is in it.
3: For model 1200 pan mill, the roller diameter is 1200mm, thickness is 200mm, weight is 1.5t/pcs.The smooth surface design will be good for the grinding efficiency.
4:The grind roller will run on it to protect the basin bottom. its thickness is 100mm for 1200 wet pan mill. It belongs to wearing parts.
