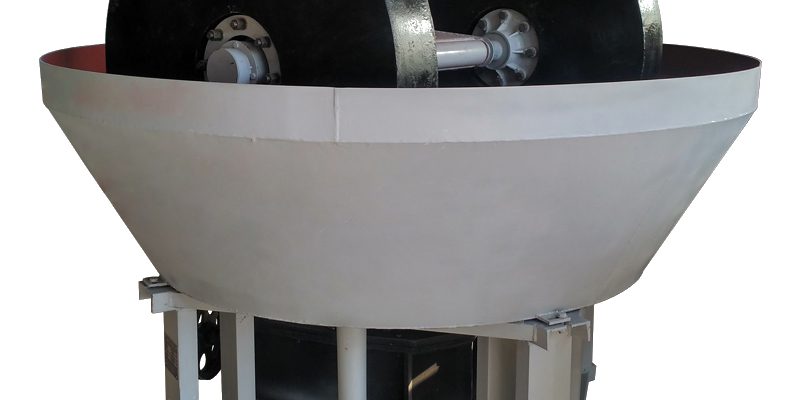

Gold Grind Machine Description:
Gold grind machine will cooperate with materials and water to join in mixed , when they mix, the process will have a functions of stirring and squeezing, cone wet grinding machine can remove the air between materials, even stir, perfect moistening, can make material to be grind fineness.
Gold Grind Machine Characteristics:
Gold grind machine is the perfect machine for grind gold, and less lost, high yield, convenient to move, less consumption energy, moderate price, easy operation, it is a perfect machine for customers to beneficiation of gold, iron ore, zinc, lead.
Gold Grind Machine Technical Data:
| Model | Specification | Input size | Speed(R/min) | Motor Power | Weight(t) |
| 1600A | 1600×400×200×500±20mm | 30mm | 20-22 | 25KW | 14.5 |
| 1500A | 1500×350×200×460±20mm | 30mm | 20-22 | 22KW | 13.5 |
| 1500B | 1500×350×150×460±20mm | 30mm | 20-22 | 22KW | 12.3 |
| 1500C | 1500×300×150×420±20mm | 30mm | 20-22 | 22KW | 11.3 |
| 1400A | 1400×250×150×350±20mm | 30mm | 16-18 | Y18.5kw | 8.5 |
| 1400B | 1400×250×150×350±20mm | 30mm | 21-23 | 18.5kw | 8.5 |
| 1350A | 1350×250×150×350±20mm | 30mm | 16-18 | 18.5kw | 8 |
| 1350B | 1350×250×150×350±20mm | 30mm | 21-23 | 18.5kw | 8 |
| 1300A | 1300×250×150×350±20mm | 30mm | 16-18 | 15kw | 7.5 |
| 1300B | 1300×250×150×350±20mm | 30mm | 21-23 | 15kw | 7.5 |
| 1200A | 1200×200×80×250±20mm | 30mm | 17-19 | 7.5kw | 5.5 |
| 1200B | 1200×200×80×250±20mm | 30mm | 23-25 | 7.5kw | 5.5 |
| 1100A | 1100×200×80×250±20mm | 30mm | 17-19 | 7.5kw | 5 |
| 1100B | 1100×200×80×250±20mm | 30mm | 23-25 | 7.5kw | 5 |
| 1000 | 1000×200×80×250±20mm | 30mm | 13-15 | 5.5kw | 4.5 |
